3D workpiece processing

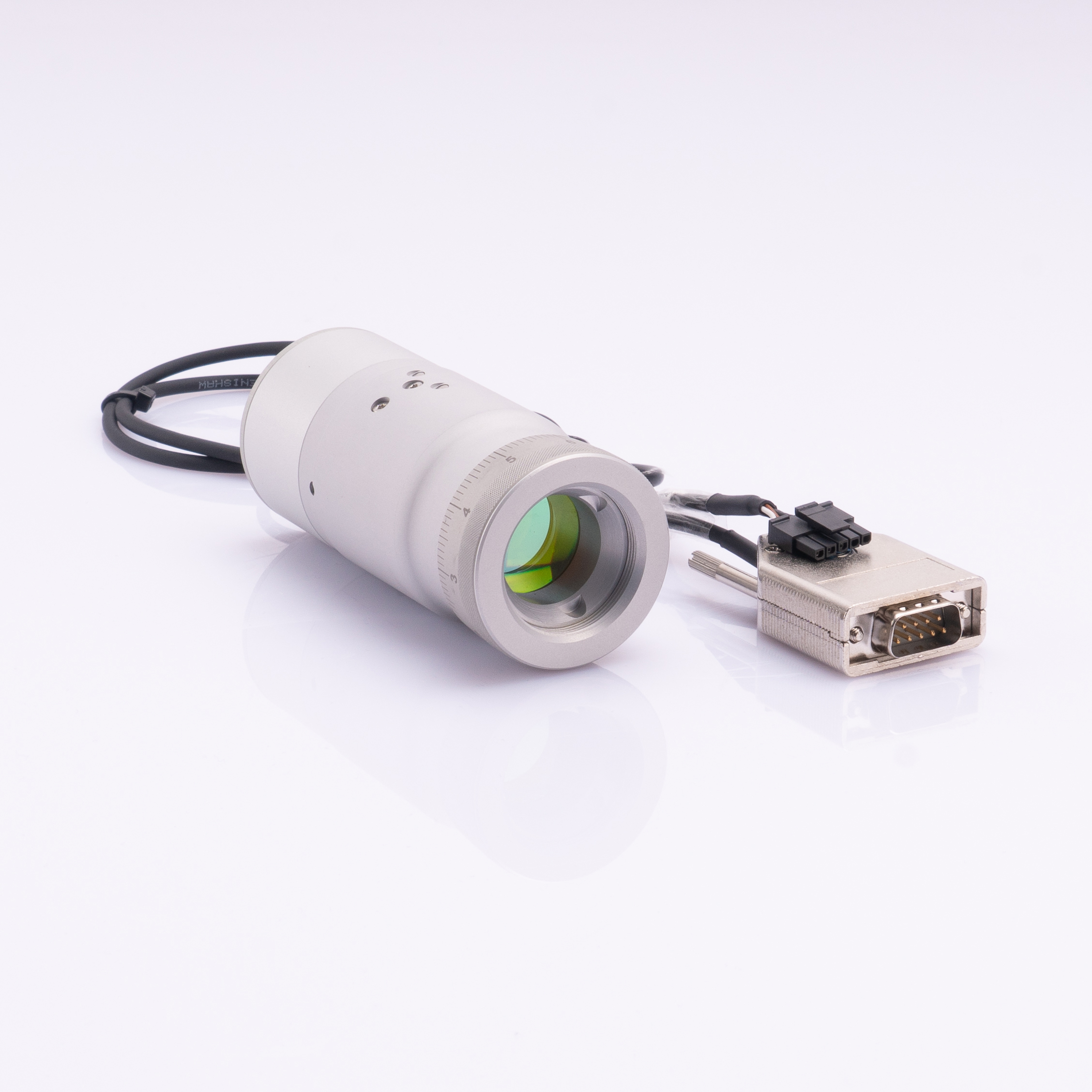

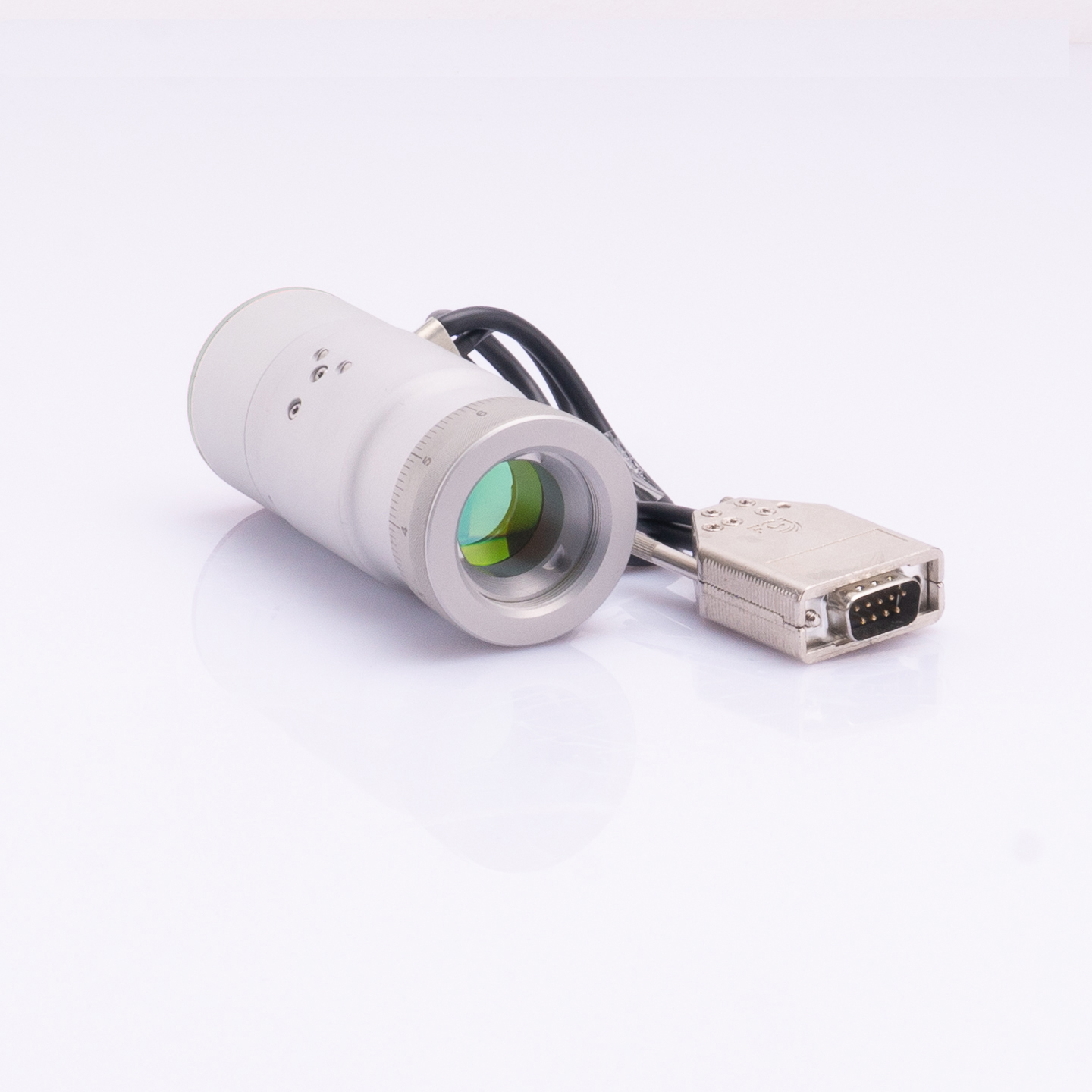

varioSCAN II focusing units enable highly dynamic and exceptionally precise positioning of the laser focus along the beam direction. The z axis extends 2D scanning systems for 3D processing or replaces expensive objectives in flat field correction. The product series offers a wide range of different sizes, optics designs and functional upgrades (e.g. integrated encoder). Each system design is tailor-made for the customer's application.

Features of the varioSCAN II

• Position independence for installing the z axis in any orientation
• Clean optimised design for high laser power
• Revised optics configurations concerning image quality, wavelength range and power compatibility
• Compact design for easy installation

Variants

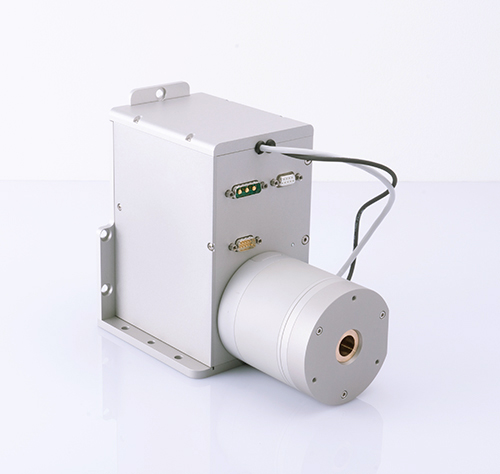

varioSCAN II eBox

• Electronic cards in a compact box
• Flat design that creates flexible integration options
• Rear drilling pattern also suitable for upright installation
• EMC and RoHS compliant
• Improved thermal management
• SL2-100 and XY2-100 variants available
