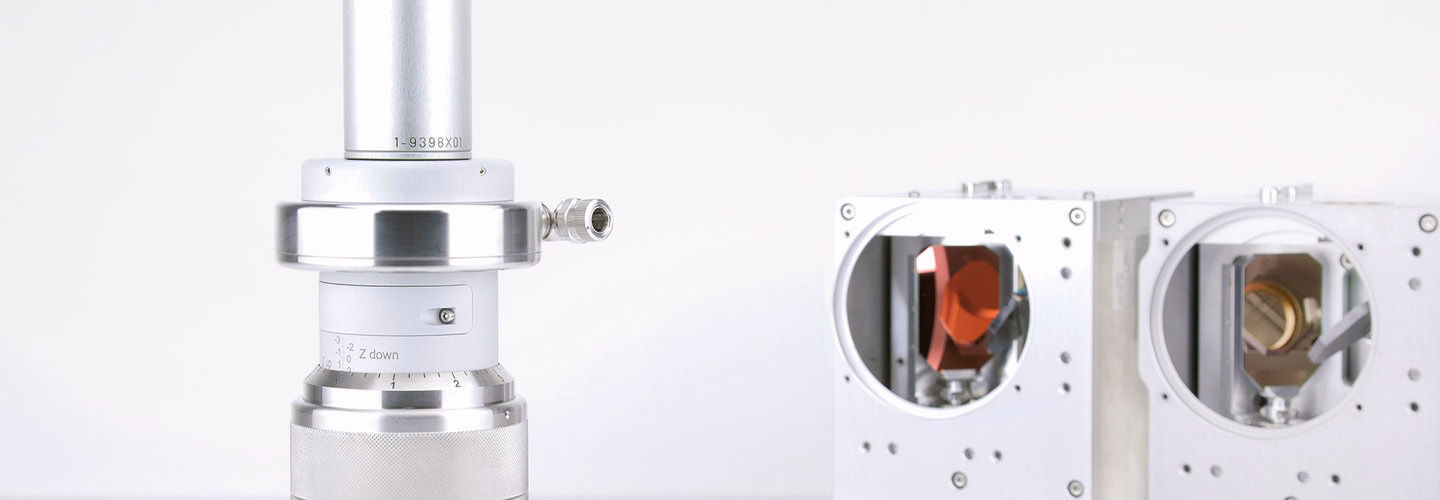

Collimation Module

Fiber Connection for Scan Heads

Using a Collimation Module enables direct connection of a fiber-coupled laser to to a scan head. The typical aperture is 30 mm.

Collimation Modules Unique Features

• Robust housing (water-cooled entrance aperture; stainless steel)
• Manually adjustable collimation optic, including scale ring
• Optionally with or without camera port (90°/180° variants)
• Connection possibilities for pyrometer, vision and OCT at the 90° configuration
• Additional beam splitter and camera adapter with C-Mount connection available as add-ons (for 90° configuration)
• Flexible mounting possibilities
• Replaceable protective window in front of collimation optic
• Good transmission for red pilot lasers
• Optical components are suitable for multi-kW laser powers
